Professional automotive desktop software

IX CAN Tool

A professional CAN and CAN FD desktop workspace for trace analysis, DBC workflows, transmission, diagnostics, replay, plotting, scripting, and bus-health engineering.

Request 30-day evaluation Request commercial license

Evaluation and commercial use are licensed. Hardware availability and supported interfaces depend on the target environment.

Capability map

Built around the complete measurement loop.

Connect, observe, decode, stimulate, diagnose, automate, and report. Each workspace shares the same project, connections, databases, and captured evidence.

Multi-bus CAN and CAN FD connection management

Live trace with DBC decoding and named filter profiles

DBC loading, browsing, editing, and packet construction

Manual, periodic, CAN FD, traffic-generation, and RTR transmit workflows

Bus load, rate, state, error, and no-RX health monitoring

Log capture, CSV conversion, replay, and real-time plotting

UDS diagnostics, J1939 foundations, gateway rules, and Python scripting

Machine-bound licensing with a 30-day evaluation workflow

Actual product screens

Technical depth without a maze of separate utilities.

IX CAN Tool Live trace screen — **Live trace**Raw and DBC-decoded traffic, structured filters, pinning, and capture controls.

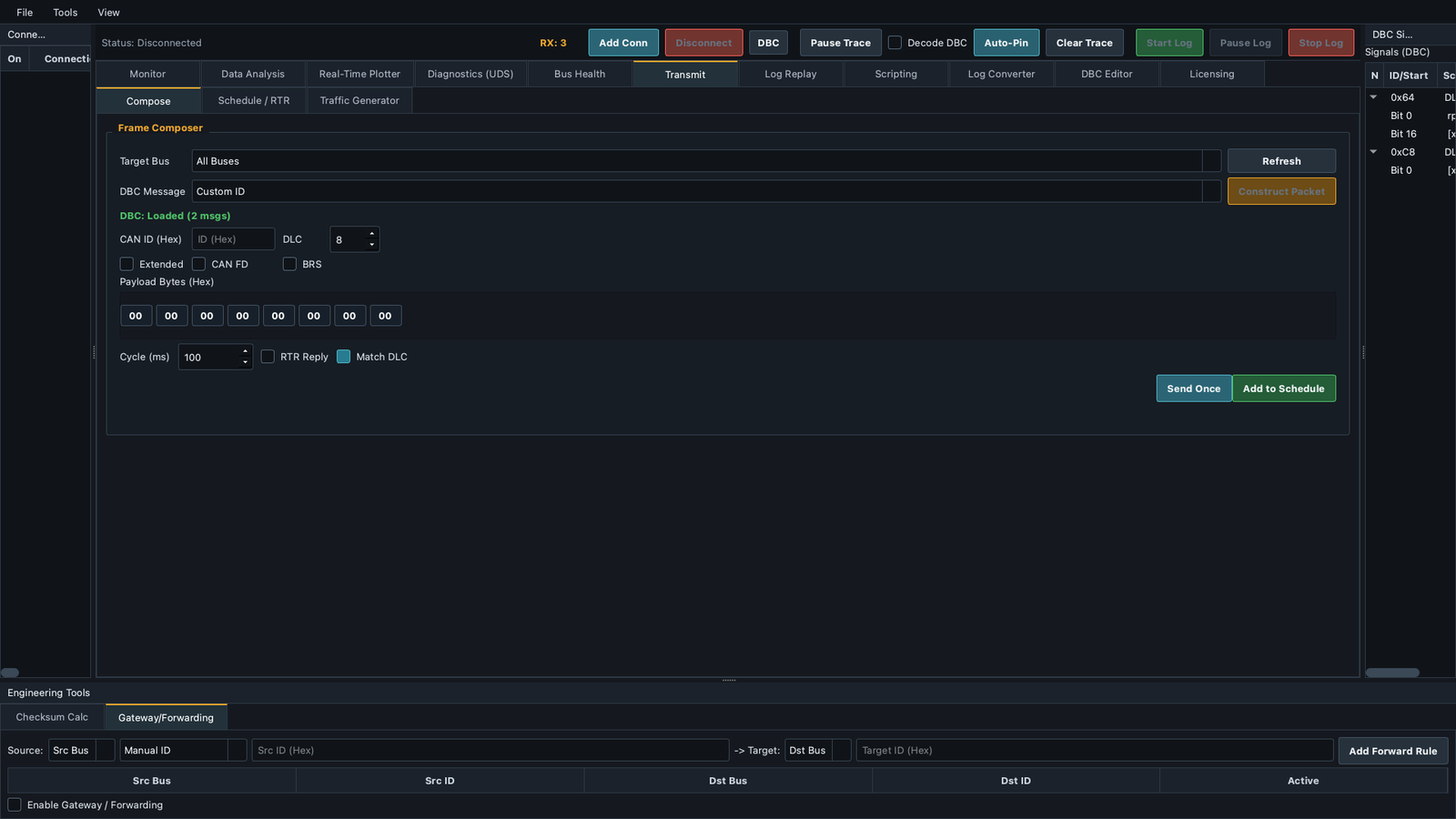

IX CAN Tool Transmit workspace screen — **Transmit workspace**Frame construction, periodic schedules, CAN FD, traffic generation, and safe RTR handling.

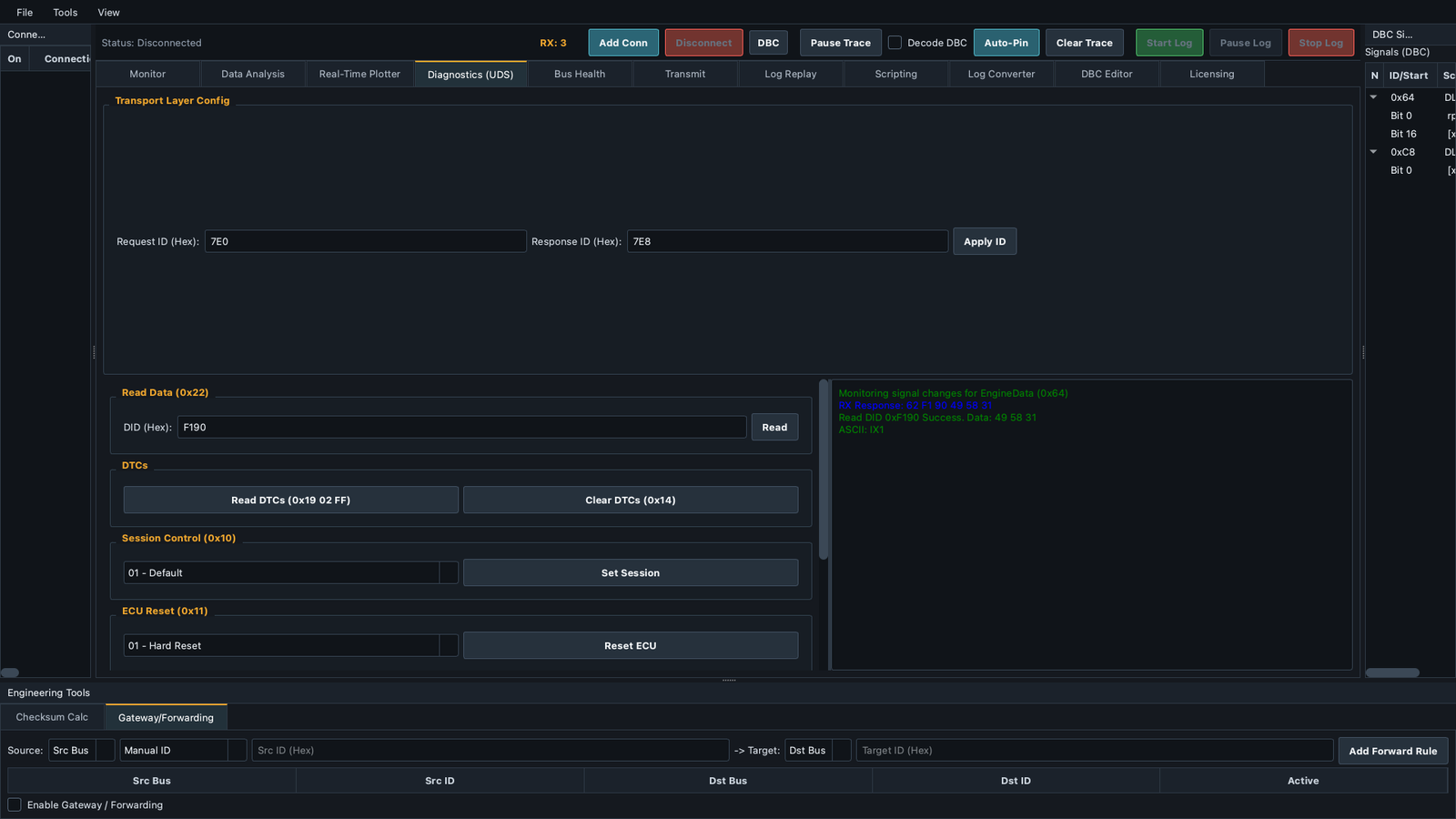

IX CAN Tool UDS diagnostics screen — **UDS diagnostics**Request and response workflows for DIDs, DTCs, sessions, resets, and monitor evidence.

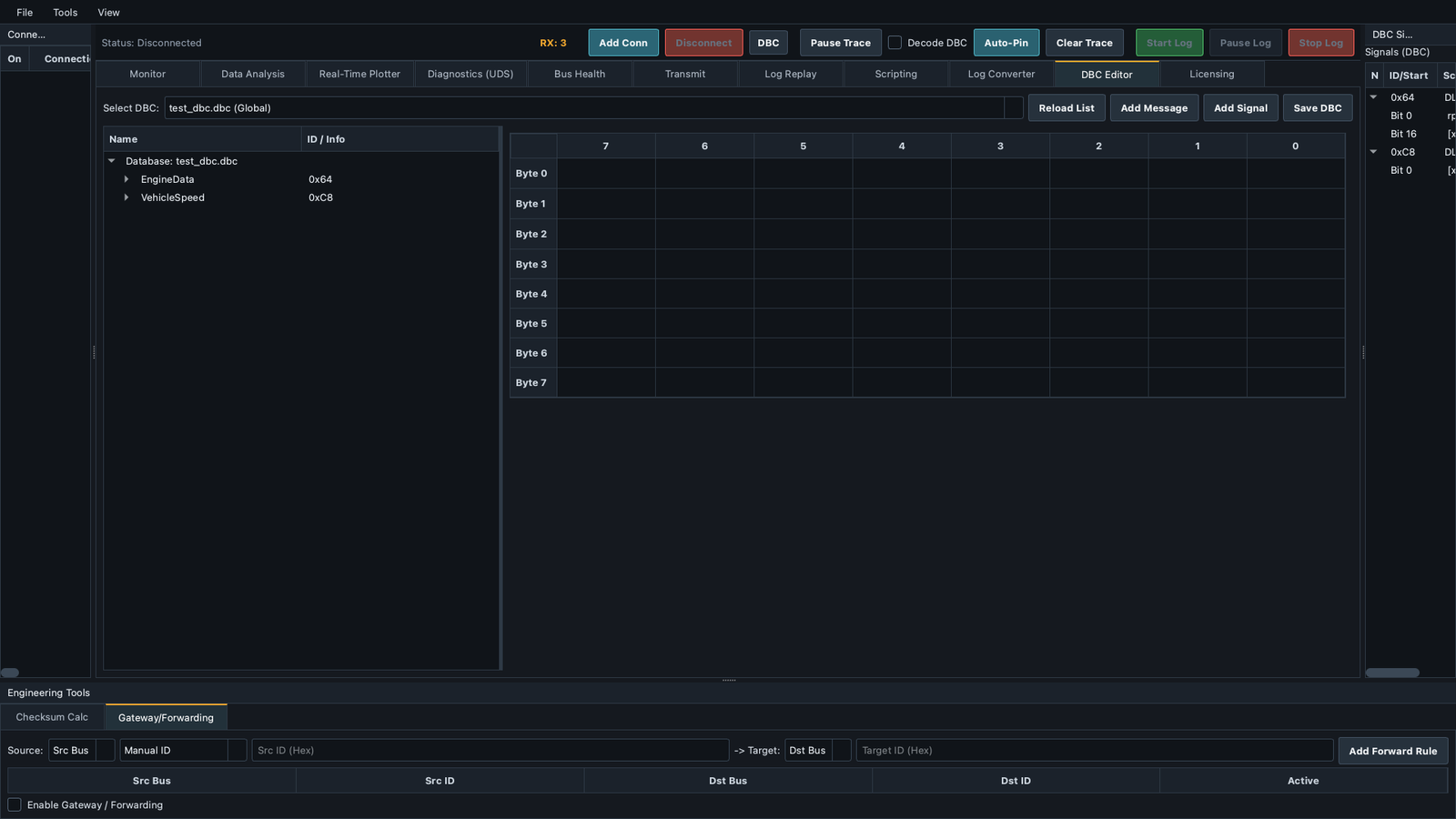

IX CAN Tool DBC editor screen — **DBC editor**Review and edit message, signal, scaling, and database definitions inside the workflow.

Typical workflows

Useful on the bench, in validation, and during fault analysis.

Network bring-up

Connect interfaces, confirm bitrate and traffic, inspect errors, measure load, and validate expected cyclic messages.

DBC validation

Load or edit a database, decode traces, compare raw payloads, construct signal-based frames, and verify encode-decode behavior.

ECU diagnostics

Configure request and response IDs, read DIDs and DTCs, switch sessions, capture evidence, and reproduce diagnostic behavior.

Regression and automation

Replay logs, schedule transmissions, generate controlled traffic, script checks, and preserve projects for repeat execution.

Interfaces and environments

Designed for multi-adapter engineering.

Interface support depends on operating system, vendor drivers, and the tested release package. Confirm your adapter and workflow when requesting an evaluation.

Evaluation

30-day trial

Use the evaluation to validate your adapter, DBC, trace, transmit, diagnostics, and project workflow before purchasing.

Request evaluation

Commercial license

Project and team use

Commercial licenses are machine-bound and scoped with the release, support, adapter, and deployment requirements.

Request a quote

Safety first

Transmitting on an active vehicle network can cause malfunction, damage, or injury. Use IX CAN Tool only on authorized systems with an approved test plan, safe bench setup, and recovery procedure.

Evaluate IX CAN Tool

Confirm your adapter and workflow before licensing.

Send the target operating system, CAN interface, protocol, and the main engineering task. We will align the evaluation package to the use case.

Request consultation Request IX CAN evaluation
